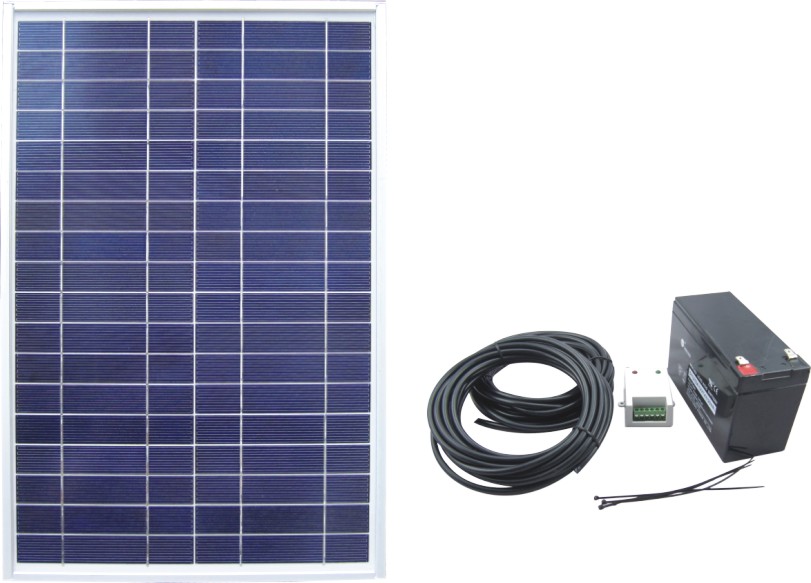

The SPS2 solar power system  is designed for providing the DC power supply for the DC applicants. The parts only based on our experience and suggestions. Customers may adjust the parts according to their DC load requirements.

1. Description:
• Installs in seconds/maintenance free.
• Waterproof/rust/shock/UV-resistant frame
• Cabling includes 10 ft extension cable
• Built-in discharge protection (blocking diodes).
• Maximum power 20Wp.
• Nominal current:  1.14 A & 17.6V in full sun.
• Suitable for all DC 12V applicants

2.More information:
Specification of solar panel:
Output power(peak):20W
Working voltage:17.6V
Working current:1.14A
Open voltage:21.6V
Short circuit current:1.23 A
Size:530×340×28 mm
Standard test condition:AM1.5,1000W/㎡,25℃

Solar controller: 12V,3A
Recharging battery: 12V,12Ah
Including the installation wiring kits

3.Application
Use for portable TV, radio,garden light,lantern,car battery booster,outdooractivities,etc
